Printable Armalex Lexan  Gloss

Armalex Velvet Gloss

Armalex and LexEdge are series of rigid clear polycarbonates with textured or smooth surfaces. All have smooth print surfaces that are protected by a mask that is removed before printing.

Many overlays are printed on the back side (sub-surface) and then laminated with adhesive. We have both sub-surface media and laminates that achieve similar results in the same applications. Armalex and Tuff Cover laminates are more chemical resistant.

There are 100s of media & adhesive combinations available. We have listed the readily available media here. If you don't see what you need listed here, please call us 1-800-232-8018, because there are too many variations to list them all in this catalog.

Rigid clear Polycarbonate with a gloss top surface and a smooth sub-surface coated for thermal transfer printing. Armalex™ is rolled "print side" out and has a protective mask on both sides of the Polycarbonate to protect polycarbonate from blocking and scratching. Prior to printing remove protective mask from outside wrap of roll. Intended uses include graphic overlays for membrane switches and control panels, and sub-surface signage.



Armalex MaskClear Window
Armalex MaskClear Window
Armalex MaskClear Window

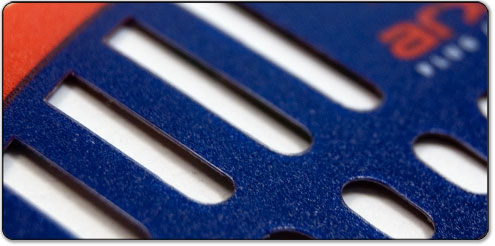

Armalex Velvet Gloss is strong and durable Armalex Velvet Gloss is clear and has a mask to protect the printable side. Armalex Velvet Gloss is 10 mils thick and cuts cleanly.



Armalex 10 mil Velvet Gloss is a rigid clear polycarbonate with an embossed velvet textured top surface and a smooth printable surface for printing. For non-outdoor applications. Use “LexEdge Outdoor” or Armalex & Tuff Cover laminates for UV.



Description Rigid clear Polycarbonate with a gloss top surface and a smooth sub-surface coated for thermal transfer printing. Armalex™ is rolled “print side” out and has a protective mask on both sides of the Polycarbonate to protect polycarbonate from blocking and scratching. Prior to printing remove protective mask from outside wrap of roll. Intended uses include graphic overlays for membrane switches and control panels, and sub-surface signage.
Thickness 10 mil. without the protective liner.
Outdoor Life Intended for indoor use. May discolor over time with continuous exposure to UV light.
Shelf Life 1 year stored at 70º F and 50% RH.
AdhesiveAlthough Armalex™ does not have adhesive, pressure sensitive transfer adhesives are often used with it. Adhesives should be compatible with polycarbonates.
Service Temperature Range -40º F to 212º F
General Application Notes Remove the protective cap from the portion of the roll intended to be printed on. Once printed, use a paper interleaf between finished sheets if they are to be stacked. If you must clean the surface, use distilled water and let dry before printing. Do not expose to alcohol, strong Alkalis, Amines, Esters, Aromatic Hydrocarbons, or Ketones. Use mild detergents or sprays to clean the gloss non-print surface. USE A 45º BLADE FOR SCORE CUTTING.

Fine PrintAll of the descriptive information listed above is our recommendation only. This information does not suggest or constitute a written or verbal warranty or guaranty of any kind by the manufacturer or distributor of this product. Purchasers of this product shall be responsible for independently determining the suitability of the material for the intended application.
